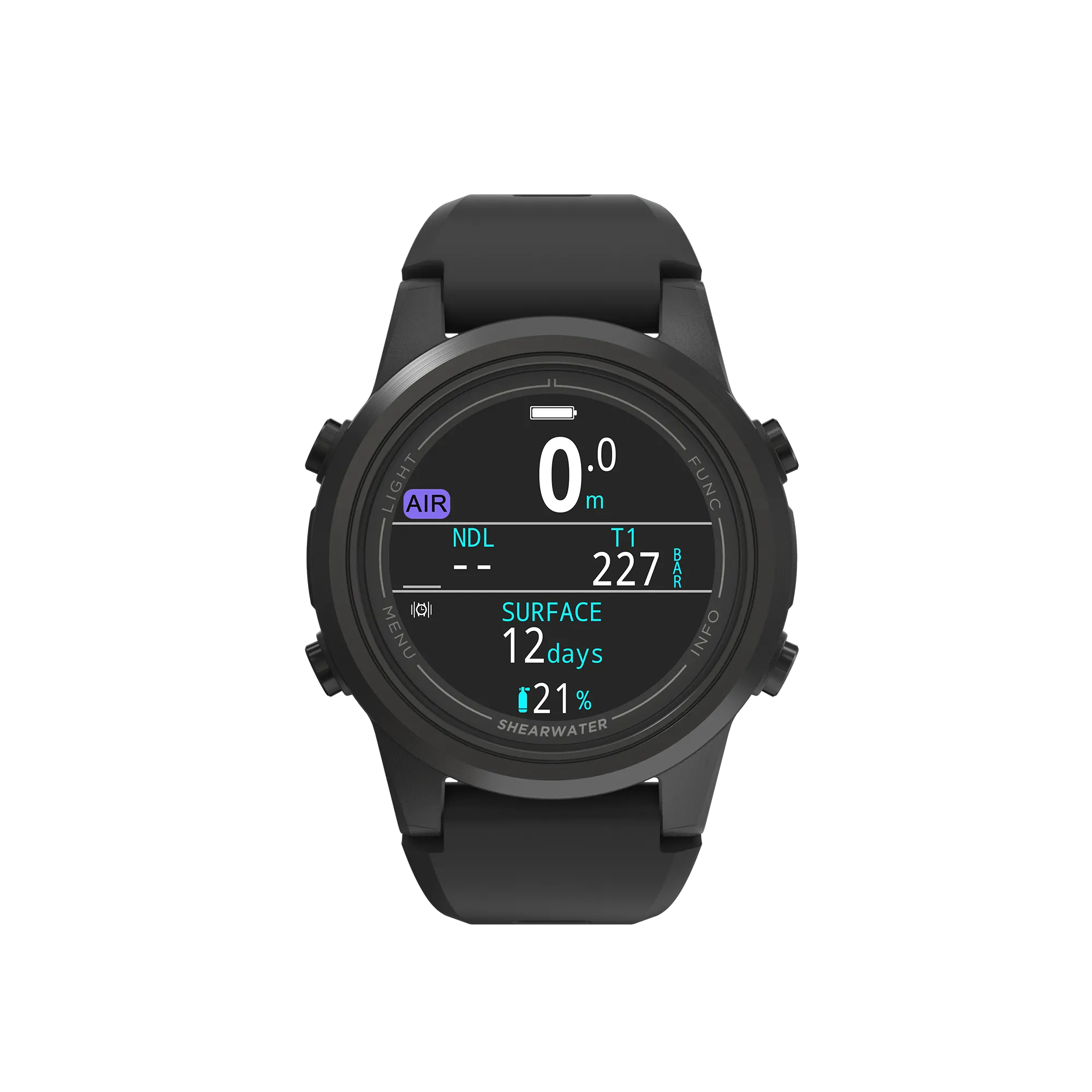

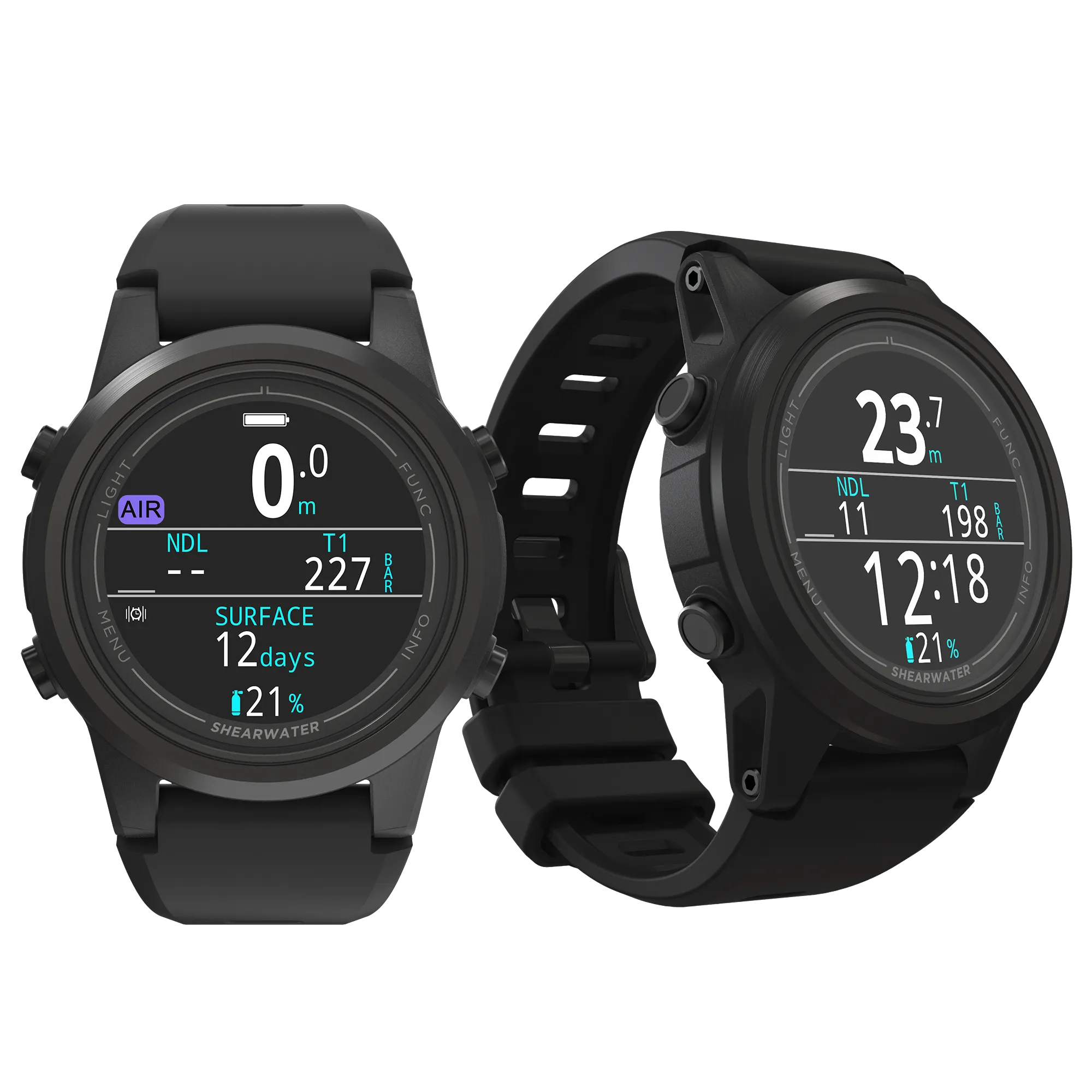

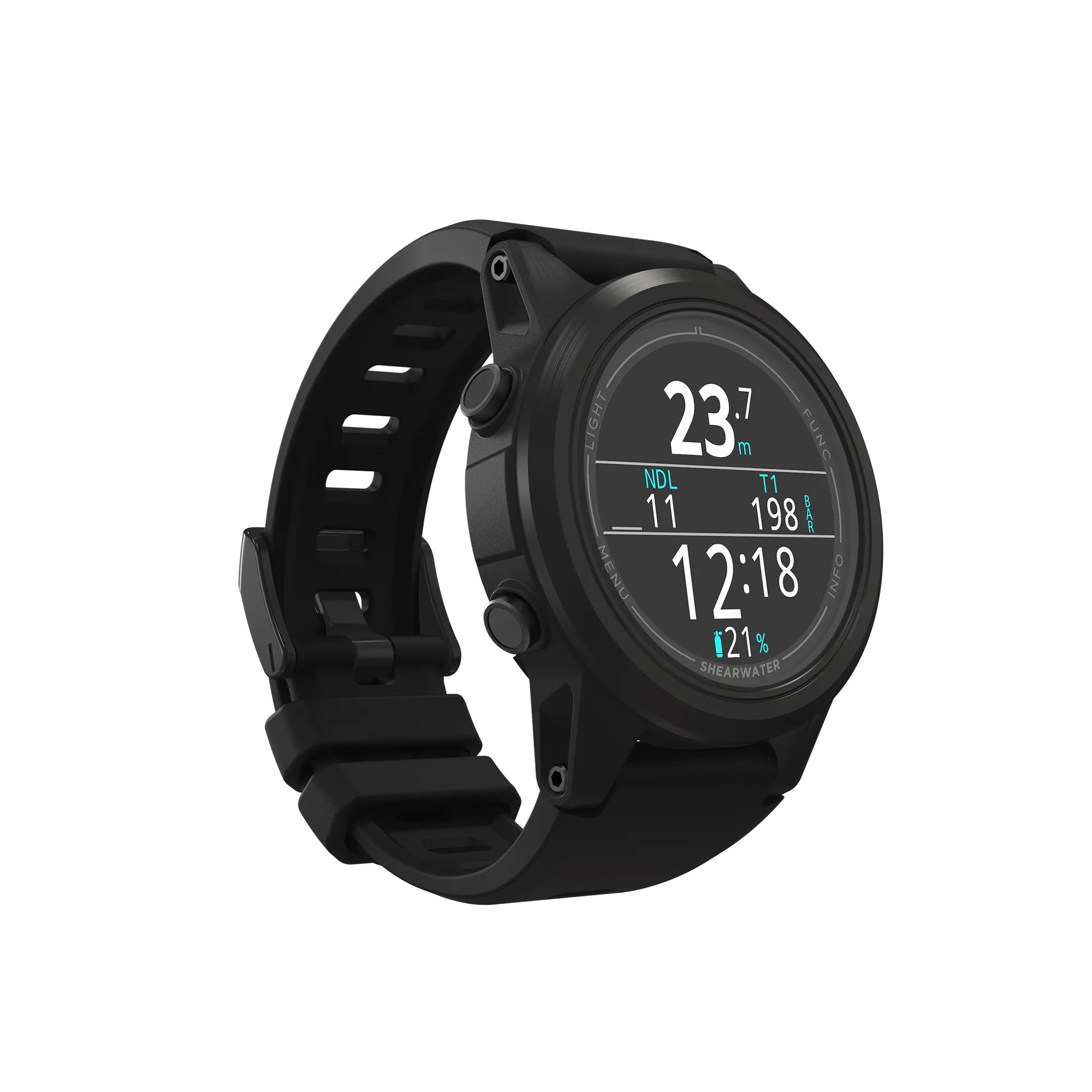

Our most compact dive computer redefines diving convenience and versatility for sport divers. Incorporating a compact design with advanced features, the TERN TX includes both optional wireless air integration with up to 4 tanks and a digital compass. Its enhanced visibility, user-friendly interface, and compatibility with multiple diving modes, make it an essential tool for divers seeking reliability and ease of use.
Designed and Built in Canada and depth-rated to 120 meters.
-
FULL COLOUR, BRIGHT, HIGH-CONTRAST AMOLED DISPLAY
-
AIR INTEGRATION CAPABILITY
-
TILT COMPENSATED DIGITAL COMPASS
-
WIRELESS RECHARGEABLE BATTERY
Modes
- Air
- Nitrox
- 3 Gas Nitrox
- Gauge
- Freediving
Features
- Decompression computer
- Air integrated
- Connects up to 4 transmitters
- 3 axis, tilt compensated, digital compass
- Bluetooth wireless technology
- Switchable vibration alerts
- Upgradeable firmware
- 316 Stainless bezel and buttons
- 22mm strap size with quick connect (one long and one short strap included)
- Ballistic nylon polymer case
Technical Specs
- Screen Resolution: 360 x 360
- Display Type: Full colour AMOLED
- Screen Brightness: Minimum 300 nits. Typical at 350 nits
- Display Size: 3.3cm / 1.3"
- Toughened Glass Window: Yes
- Battery Type: Rechargeable Li-ion battery
- Battery Life: up to 20 hours (medium brightness), up to 6 months (standby)

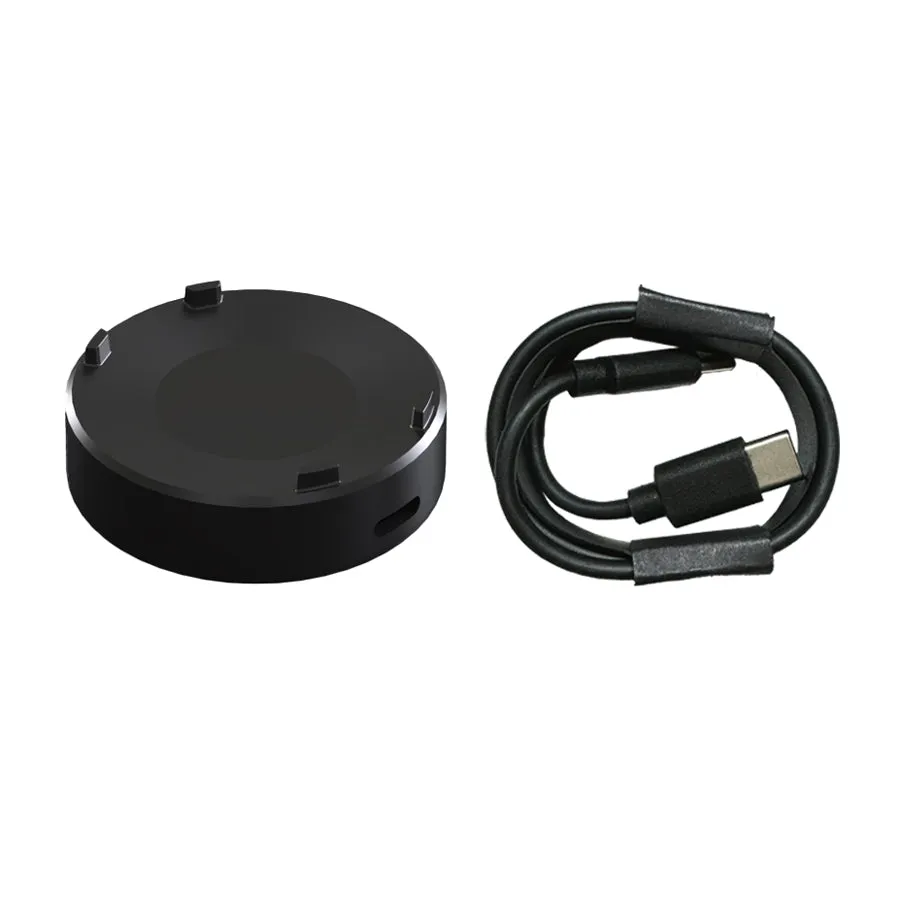

- Wireless Charging Station: Yes
- Number of Gases: 3 OC
- Depth Rating: 120m / 394ft
- Dive Log Capacity (10 second rate): 500 Hours
- Size (Dive Computer): Diameter - 50mm
- Size (Dive Computer): Thickness - 16mm
- Weight (Dive Computer): 100g

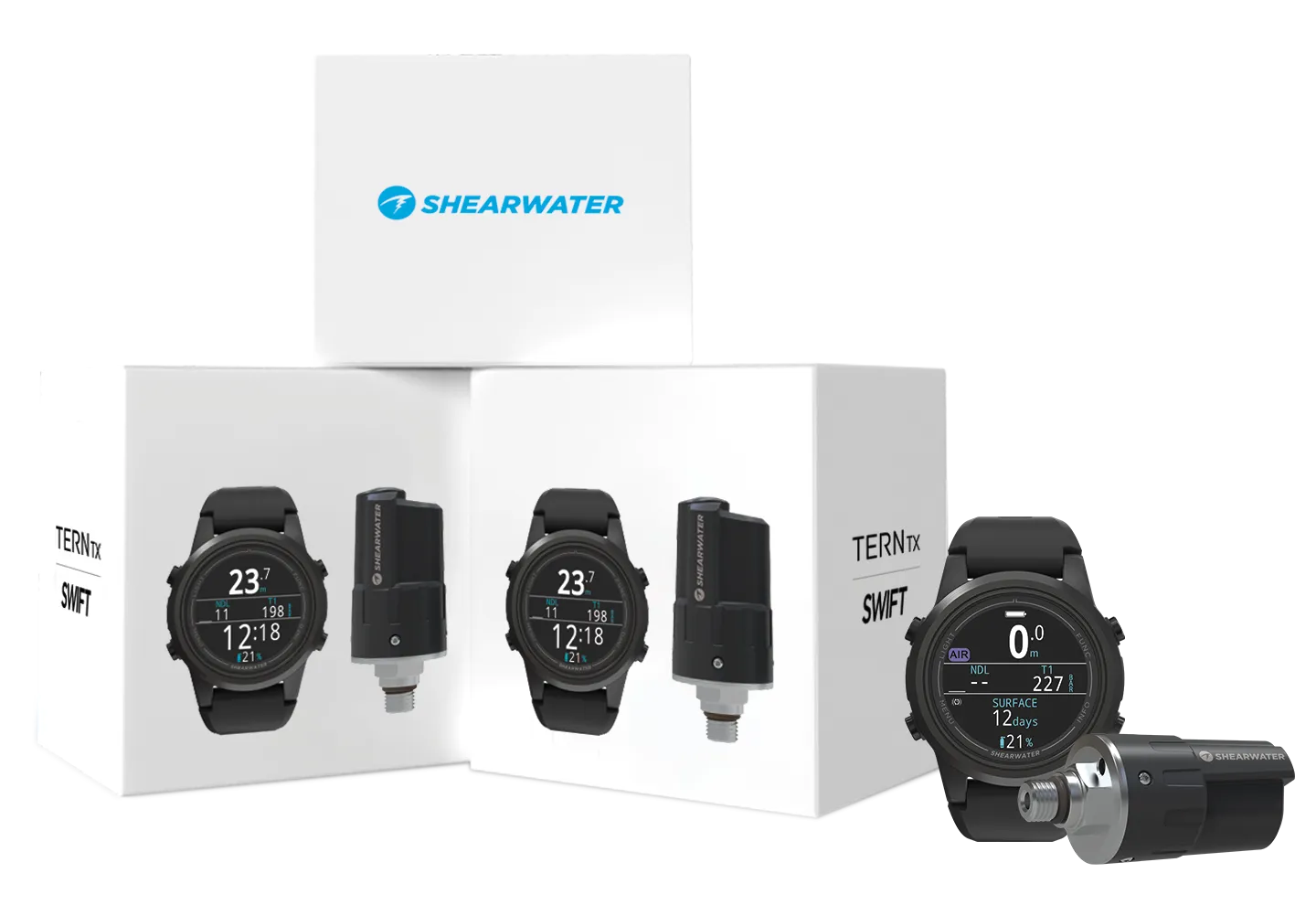

SWIFT TRANSMITTER
Next generation smart air integration transmitter. The Swift allows divers to carry multiple transmitters reliably. The collision avoidance protocol allows for multiple transmitters to be used at the same time with a lower likelihood of dropped communications. The Swift is designed and built in Canada for demanding divers of all proficiency levels.
Swift Features
- Advanced collision avoidance system ensures reliability using multiple transmitters
- Randomized transmit interval allows for reliable simultaneous use of multiple Swift transmitters
- LED status indicator
- Easy ‘no tools’ installation and removal on divers first stage
- Compatible with all existing air integrated Shearwater dive computers and many other computers already on the market
Technical Specs
- Depth limit: 200msw
- Operating temperature range 4C to 34C
- Short-term (hours) temperature range: -10C to 50C
- Pressure port: 7/16" = 20NF
- Rated air pressure: 3600 bar / 4350 psi
- Pressure reporting resolution: 0.14 bar / 2 psi
- HP port proof pressure: 450 bar / 6525 psi
- Accuracy: 5% full scale
- Zero offset: <3.5 bar (50 psi)
- Activation pressure: 7 bar (100 psi)
- De-activation pressure: 3.5 bar (50 psi)
- Cover screws: 1.5mm hex
- Body o-ring: 24x1.5mm
- HP port o-ring: A5568-904 75A
Dimensions
- Size 76mm (L) x 34mm (D)
- Weight 135g
Battery
- Battery type: CR2 3V Lithium (User replaceable)
- Battery life: Up to 300 dive hours (HP pressure present) 5 year storage time
