PRODUCT CODE : SCC145120510

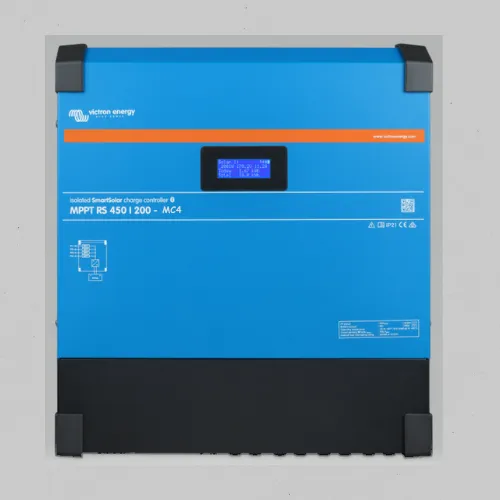

The SmartSolar MPPT RS 450/200-MC4 solar charge controller is Victron's solution for systems with large series connected PV arrays charging 48 V DC battery banks. This product is perfect for large off-grid, and grid connected battery system.

The 450/200-MC4 is suitable for up to 11.52KW 80-450 VDC operating solar voltage input featuring independent tracking inputs, full connectivity, isolated PV connections, display screen, fully programmable battery charging parameters and active cooling. The new metal case design and fully covered electrical connections improve the safety and modernise the presentation in line with the latest suite of Victron products.

MPPT: Ultra-fast Maximum Power Point Tracking

The Smartsolar RS Charge controller connects to a PV array of between 80 and 450V Voc and will efficiently charge your 48V battery bank with 100A. The charge setting are fully programmable and can be set up for different battery chemistries like lead-acid, lithium and more.

Set-up And Monitor With VictronConnect

The Smartsolar RS charge controller can be remotely controlled and configured over Bluetooth via the VictronConnect App. This allows device set-up, management, at a glance information, such as battery voltage and current, PV voltage and current, historical data and trends.

Daisy-Chain Additional Units

The Smartsolar RS Charge controller is equipped with VE.Can Bus ports. This allows for communication for with additional Smartsolar RS or MPPT units. The additional units are simply "daisy chained" to each other by an RJ45 cable. When connected to each other, all individual charge controllers, will synchronise their charge stages. They will also send their data via the same cable, for monitoring to a GX device (such as a Cerbo GX).

Remote Monitoring & Control

If the GX device is connected to the Internet, the VRM portal provides access to the full power of your Smartsolar RS controllers. If your installation is connected to a GX device and the Internet, the VRM portal provides access to the full power of your MPPT anytime, anywhere for free.

Smartsolar Display

The Smartsolar RS Charge controller comes equipped with a display on the front panel. The display reads battery volts , charge current, and voltages from both array's individually including instantaneous and total figures and unit status including any possible error codes.

I/O Connections

The Smartsolar RS Charge controller is equipped with a programmable relay and options for remote temperature and voltage sensing. The remote input can accept the Victron smallBMS and other types of BMS with allow to charge signals.
