Name: VICTRON SMARTSOLAR MPPT 250/100 VE.CAN CHARGE CONTROLLER
SKU: 707585

VICTRON SMARTSOLAR MPPT 250/100 VE.CAN CHARGE CONTROLLER

$ 63.85

$ 147.03

Save: $

Terminal Type:

TR Terminal
MC4 Terminal

Unavailable

Please select combo product attributes

The combo subtotal is $,SAVE$

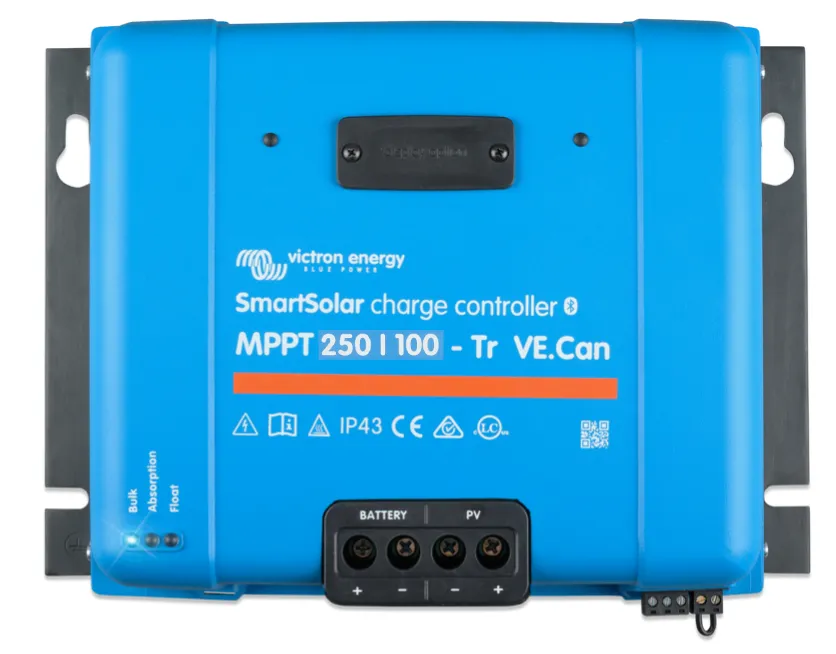

TR TERMINAL PRODUCT CODE : SCC125110412

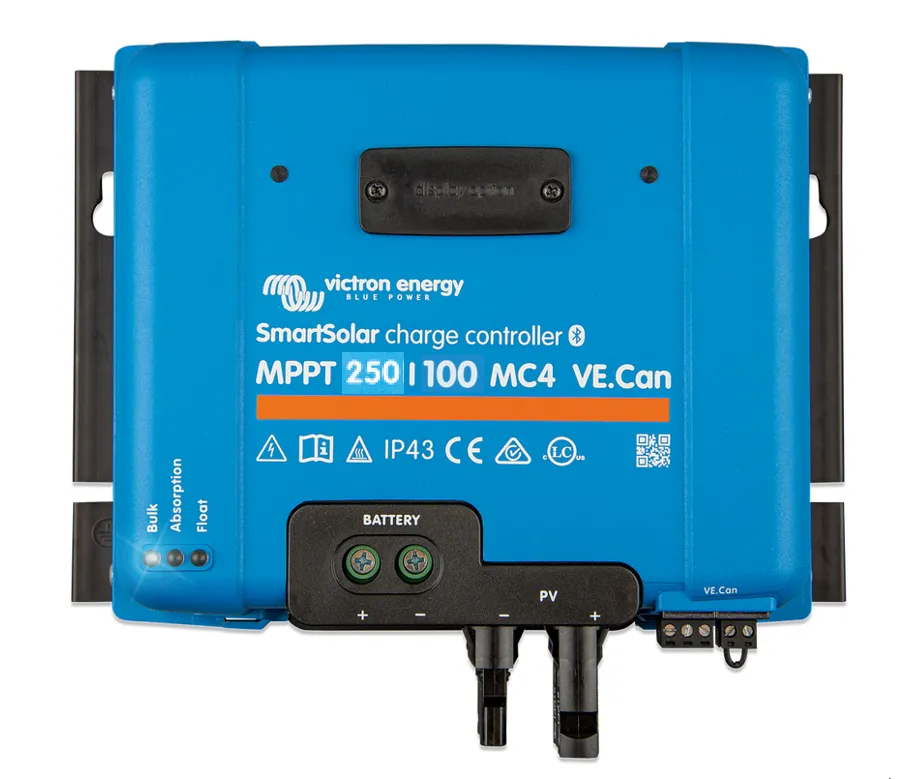

MC4 TERMINAL PRODUCT CODE : SCC125110512

Please Note: Under Australian Standards if the DC input voltage exceeds 120V this unit must be installed by a qualified licenced A Grade electrician.

(12V/24V/36V/48V) - Built in Bluetooth

Set to replace the old Victron BlueSolar 150/100 CAN Bus charge controllers, these New Smartsolar VE.Can MPPT's feature;

Equal device instances enables synchronised charging (Will not synchronise with old model)
Built-in Bluetooth.
Supports ESS and Intelligent (canbus) batteries, just like toady's VE.Direct models.
VE.Can Port.

When To Use:

In Large Sytems.
Daisy-chained comms wiring: reduces wire clutter.

One Of These Will Outlast Cheap And Nasty Imports

5 Year Warranty

Ultra-Fast Maximum Power Point Tracking (MPPT)

Especially in case of a clouded sky, when light intensity is changing continuously, an ultra-fast MPPT controller will improve energy harvest by up to 30% compared to PWM charge controllers and by up to 10% compared to slower MPPT controllers.

Advanced Maximum Power Point Detection In Case Of Partial Shading Conditions

If partial shading occurs, two or more maximum power points may be present on the power-voltage curve. Conventional MPPT’s tend to lock onto a local MPP, which may not be the optimum MPP. The innovative BlueSolar algorithm will always maximize energy harvest by locking to the optimum MPP.
