PRODUCT CODE : SCC115035210

Please Note: Under Australian Standards if the DC input voltage exceeds 120V this unit must be installed by a qualified licenced A Grade electrician.

 (12/24/36/48V) - Built in Bluetooth

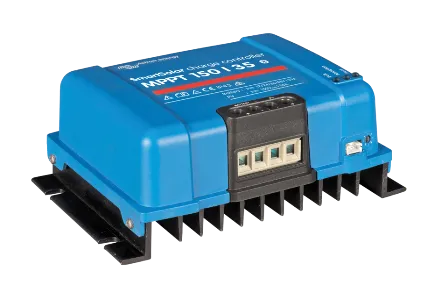

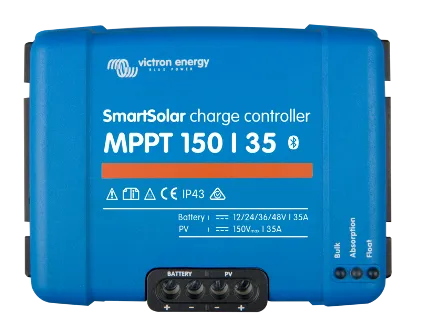

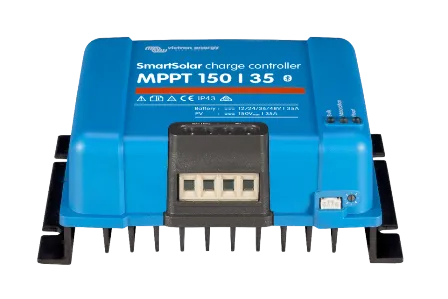

Solar Charge Controller

A solar charger gathers energy from your solar panels, and stores it in your batteries. Using the latest, fastest technology, SmartSolar maximizes this energy-harvest, driving it intelligently to achieve the full charge in the shortest possible time. SmartSolar maintains battery health, extending its life.

MPPT: Ultra-fast Maximum Power Point Tracking

By constantly monitoring the voltage and current output of your solar (PV) panels, MPPT technology ensures that every drop of available power is rinsed out of your panels, and harvested for storage. The advantage of this is most noticeable when the sky is partially clouded, and light intensity is constantly changing.

Remote Monitoring And Control

Remotely control and monitor the extensive features of your SmartSolar MPPT charger with built-in Bluetooth by pairing it with your smartphone or other devices via . If your installation is connected to the internet Victron Remote Management Portal () provides access to the full power of your MPPT, anytime, anywhere; both services are free to use. For remote installations - even when there is no internet connection or phone signal nearby - you may be able to monitor your MPPT by Bluetooth pairing with a LoRaWAN (long-range wide area network) device, available optionally.

Enclosure:

Colour: Blue RAL (5012)

Power terminals: 13mm² / AWG 6

Protection category: IP43 (electronic components), IP22 (connection area)

Weight: 1.25kg

Dimensions: 130mm (H) x 186mm (W) x 70mm (D)
