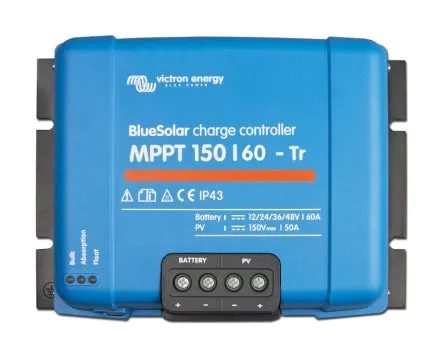

TR PRODUCT CODE : SCC010060200

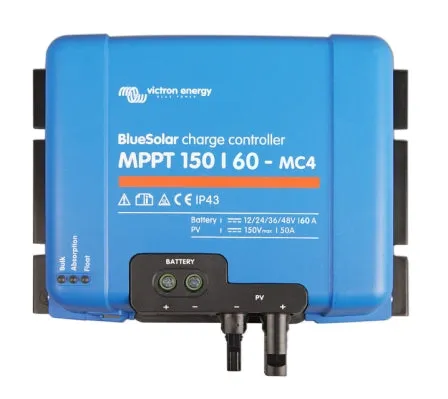

MC4 PRODUCT CODE : SCC010060300

(12V/24V/36V/48V - Bluesolar range has no Bluetooth)

Please Note: Under Australian Standards if the DC input voltage exceeds 120V this unit must be installed by a qualified licenced A Grade electrician.

A solar charger gathers energy from your solar panels, and stores it in your batteries. Using the latest, fastest technology, BlueSolar maximizes this energy-harvest, driving it intelligently to achieve the full charge in the shortest possible time. BlueSolar maintains battery health, extending its life.

MPPT: Ultra-fast Maximum Power Point Tracking

By constantly monitoring the voltage and current output of your solar (PV) panels, MPPT technology ensures that every drop of available power is rinsed out of your panels, and harvested for storage. The advantage of this is most noticeable when the sky is partially clouded, and light intensity is constantly changing.

Remote Monitoring And Control

Remotely control and monitor the extensive features of your BlueSolar MPPT charger by attaching a Victron's Smart Bluetooth dongle and pairing it with your smartphone or other devices via the VictronConnect app. If your installation is connected to the internet Victron Remote Management Portal () provides access to the full power of your MPPT, anytime, anywhere; both services are free to use. For remote installations - even when there is no internet connection or phone signal nearby - you may be able to monitor your MPPT by Bluetooth - pairing it with a LoRaWAN (Long-range wide area network) device, available optionally.

Real-Time Data Display Options

• Apple and Android smartphones, tablets and other devices: see the VE.Direct Bluetooth Smart Dongle.

• Color Control Panel.

Enclosure:

Colour: Blue (RAL 5012)

 Protection category: IP43 (electronic components) IP22 (connection area)

Weight: 3kg

Dimensions: 215mm (H) x 250mm (W) x 95mm (D)
