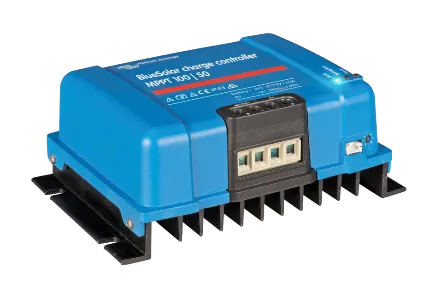

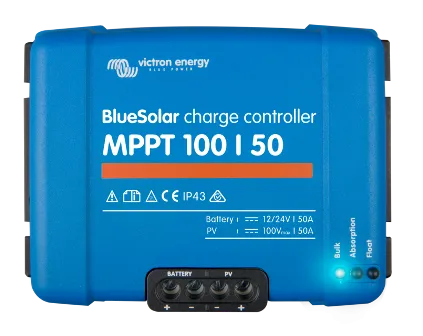

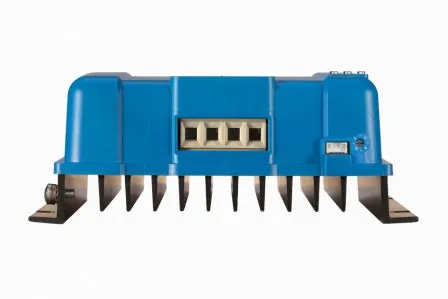

PRODUCT CODE : SCC020050200

(12/24V) Charging (Bluesolar range does not have built-in Bluetooth)

A solar charger gathers energy from your solar panels, and stores it in your batteries. Using the latest, fastest technology, BlueSolar maximizes this energy harvest, driving it intelligently to achieve the full charge in the shortest possible time. BlueSolar maintains battery health, extending its life.

MPPT: Ultra-fast Maximum Power Point Tracking

By constantly monitoring the voltage and current output of your solar (PV) panels, MPPT technology ensures that every drop of available power is rinsed out of your panels, and harvested for storage. The advantage of this is most noticeable when the sky is partially clouded, and light intensity is constantly changing.

Remote Monitoring And Control

Remotely control and monitor the extensive features of your BlueSolar MPPT charger by attaching a Victron Smart Bluetooth dongle and pairing it with your smartphone or other devices via VictronConnect. If your installation is connected to the internet Victron Remote Management Portal () provides access to the full power of your MPPT, anytime, anywhere; both services are free to use. For remote installations - even when there is no internet connection or phone signal nearby - you may be able to monitor your MPPT by Bluetooth-pairing with a LoRaWAN (long-range wide area network) device, available optionally.

Load Output

The intelligent load output function prevents damage caused by running batteries 'flat'. You can configure the voltage at which BlueSolar disconnects a load - thereby preventing excessive drain on your batteries. And here's the clever bit: BlueSolar will attempt a 100% recharge every day. If it can't - during periods of poor weather - it raises the disconnect voltage, daily, until it achieves success. We call this feature Battery Life because it maintains the health, and extends the life of your battery.

Enclosure:

Colour: Blue (RAL 5012)

Power terminals: 13mm² / AWG 6

Protection category: IP43 (electronic components) IP22 (connection area)

Weight: 1.3kg

Dimensions: 130mm (H) x 186mm (W) x 70mm (D)
